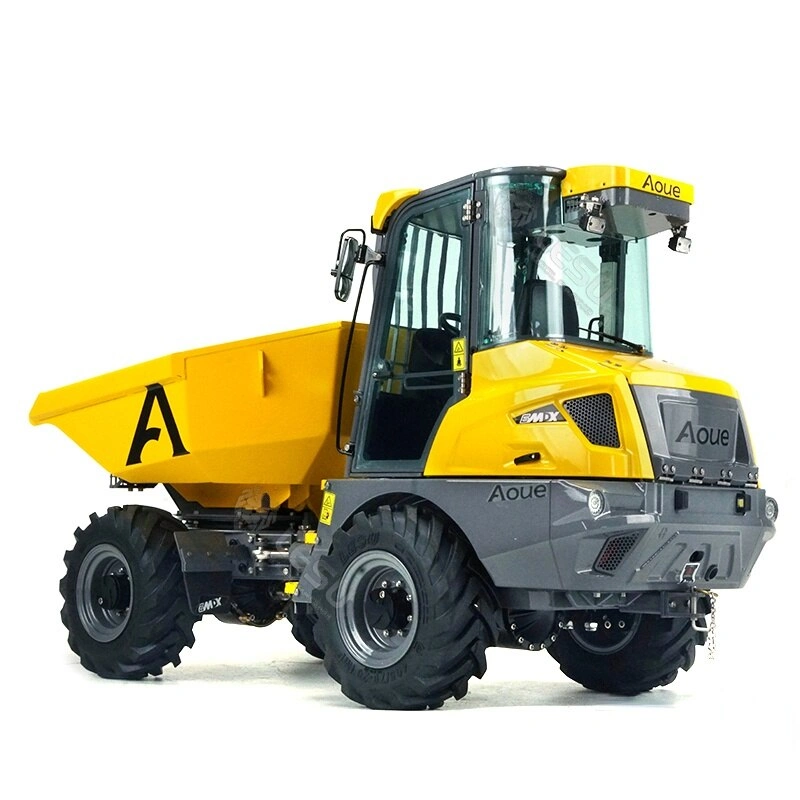

6MDX 4x4 RC Hydraulic Dump Truck - Ready to Race Metal Articulated RC Car!
Unleash your inner adventurer with this stunning piece – a meticulously crafted blend of timeless design and unexpected charm. It’s not just an object; it's a whisper of stories waiting to be told, a secret invitation to add a touch of magic to your everyday. Prepare to be captivated.

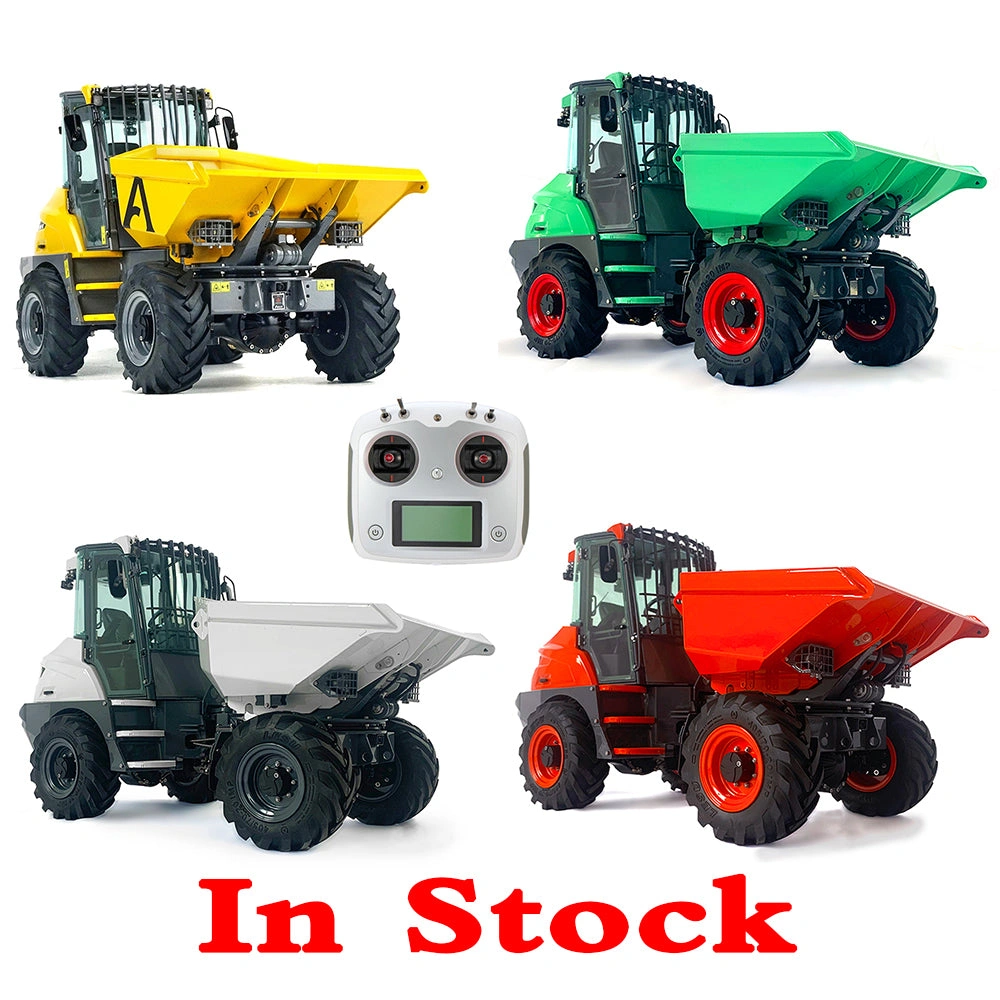

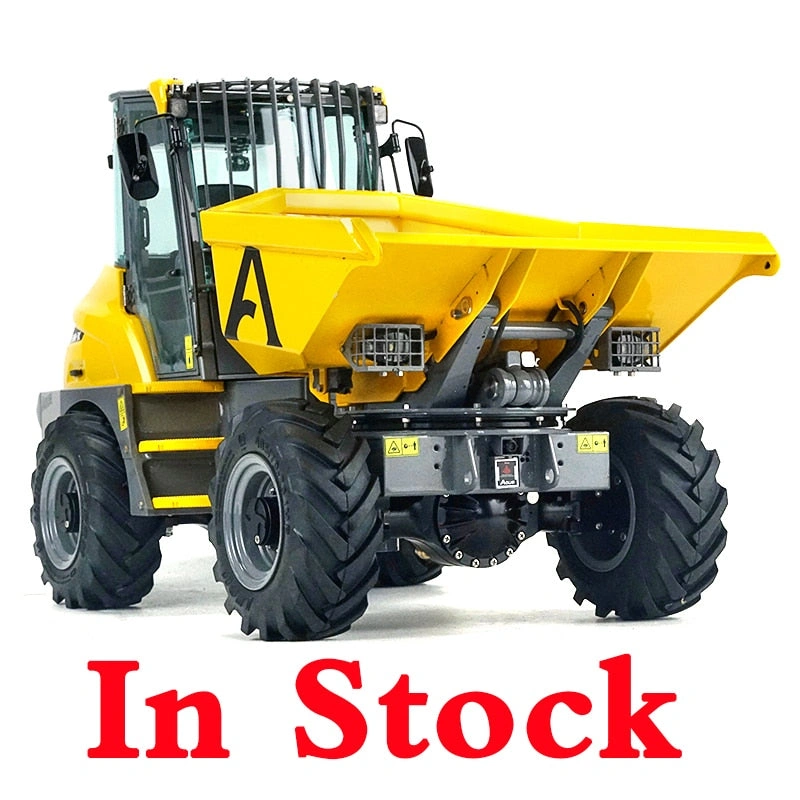

In Stock 1/14 6MDX 4X4 RC Hydraulic Dump Truck RTR Version Metal Articulated Dump Truck Model RC Car Toy
Equipped with double radium-speed power all-metal differential axle;
The hydraulic system of the two-way reversing valve, the all-metal body, the high-quality rubber climbing tires, and the sound and light system!
Product Name: 6MDX-Dump Truck
Product model: AOUE-6MDX
Product parameters: length 346.8mm, width 165.7mm, height 210.9mm, speed 30m/min, weight: 3.7kg (without battery)
Product hardware configuration: Q-9017 bridge, reduction ratio 1:3; 22mm gear motor (reduction ratio 1/27);
Yz-0001 hydraulic oil pump, rated flow 100ml/min, rated pressure 3Mpa, Y-1537 dual-channel hydraulic reversing valve)
Electronic equipment information: 320A brush ESC (walking), 30A brush ESC (car body rotation), 20A brushless ESC (hydraulic pump)

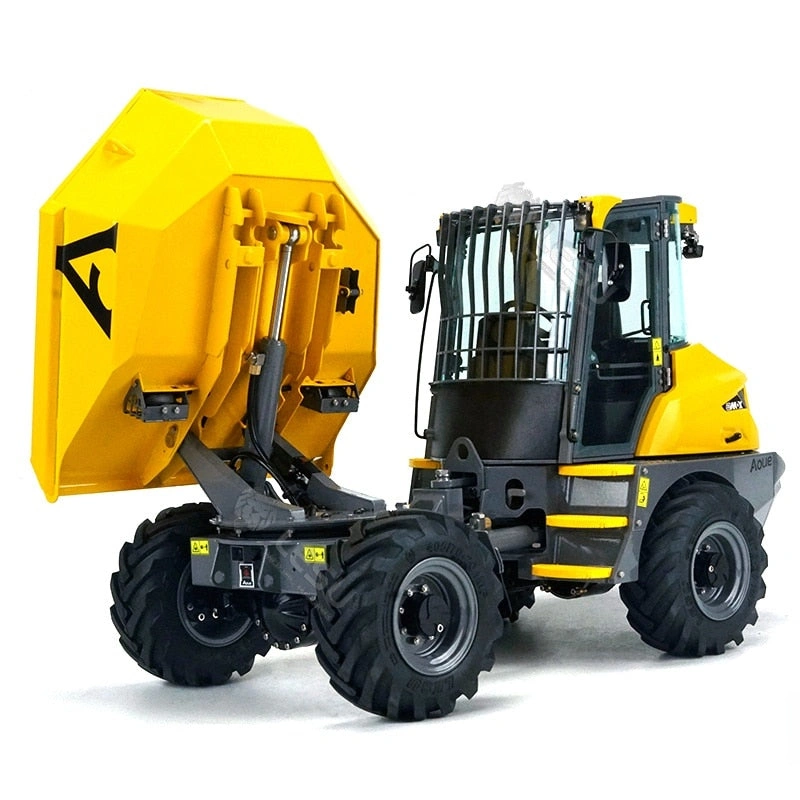

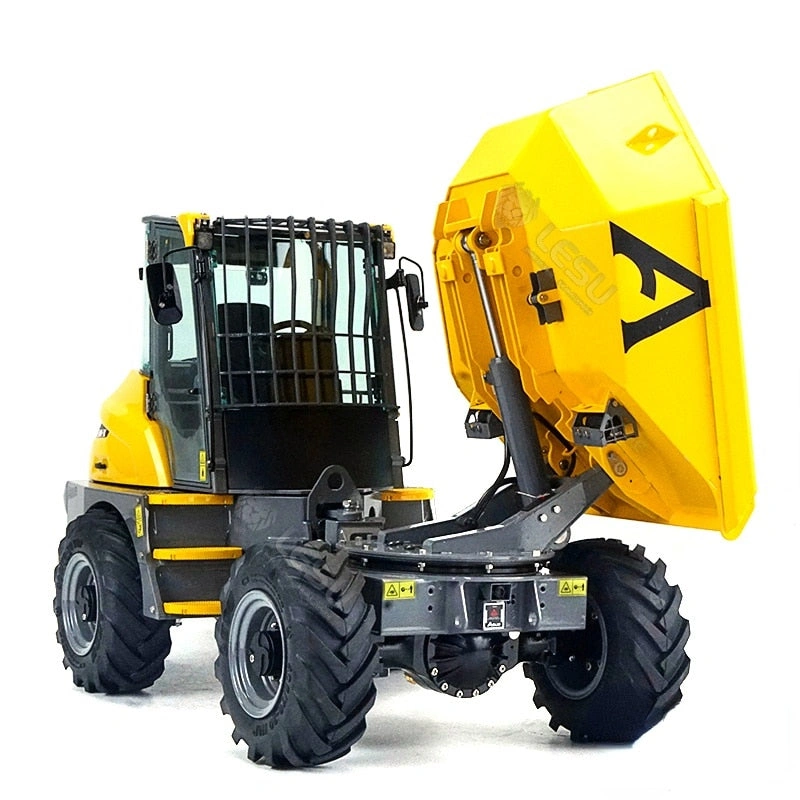

Function introduction: The turning radius is 25cm, the maximum steering angle is 25°, the maximum bucket lifting angle is 74°, the bucket rotation angle is 180° (with mechanical limit and electronic limit), and the hinge position adopts a three-point hinge structure.
Product size chart:

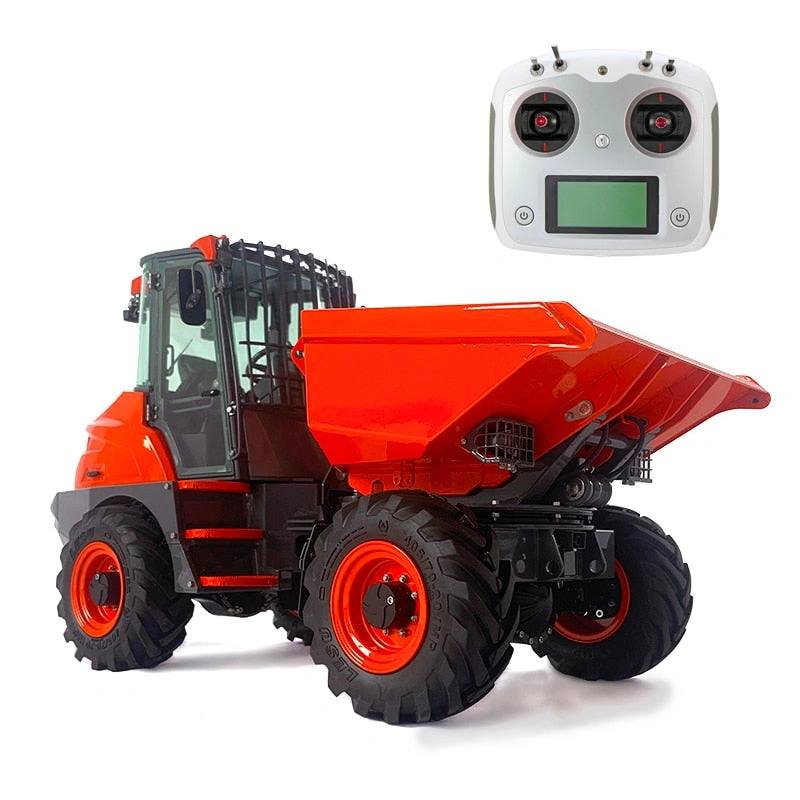

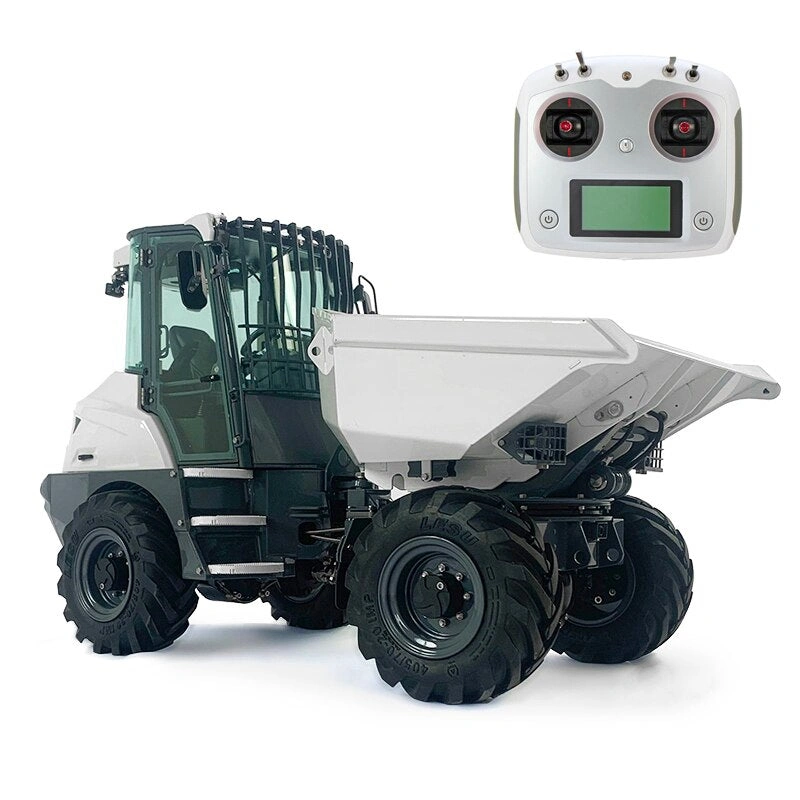

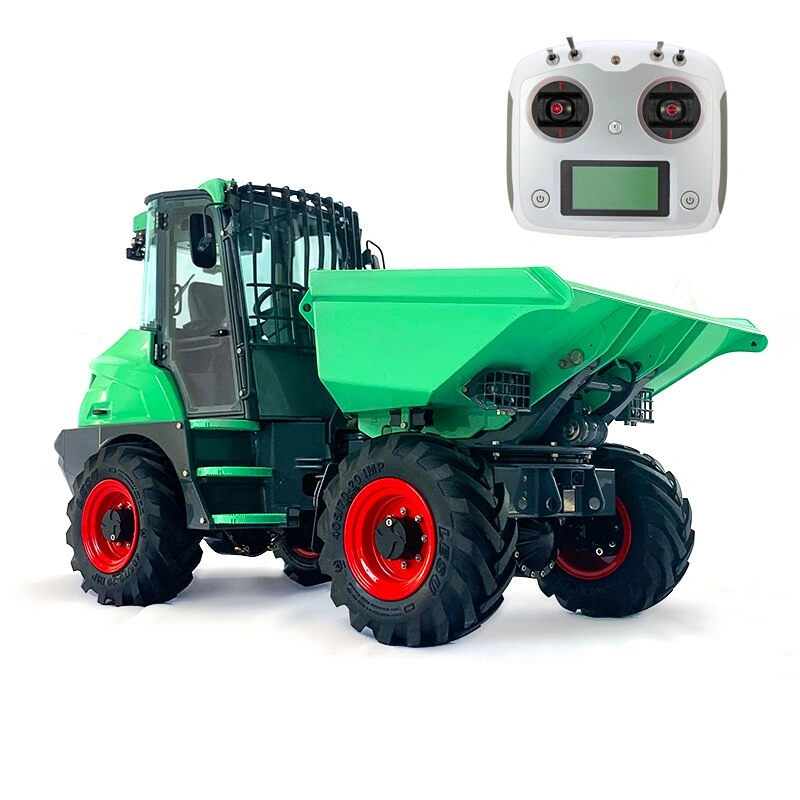

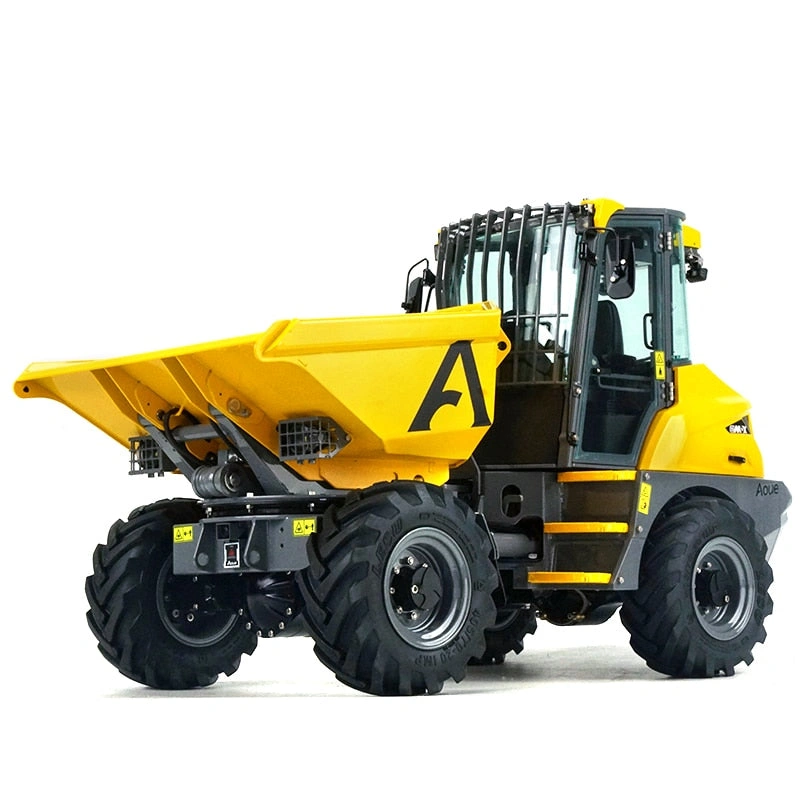

Actual pictures:
